Gator Grain Bin Gazebos

Custom grain bin gazebos built for outdoor spaces, barbecue areas, fire pits, ranch properties, businesses, and backyard gathering areas.

Gator Grain Bin Gazebos

Custom grain bin gazebos built for outdoor spaces, barbecue areas, fire pits, ranch properties, businesses, and backyard gathering areas.

Outdoor Structures with Character, Shade, and Ventilation

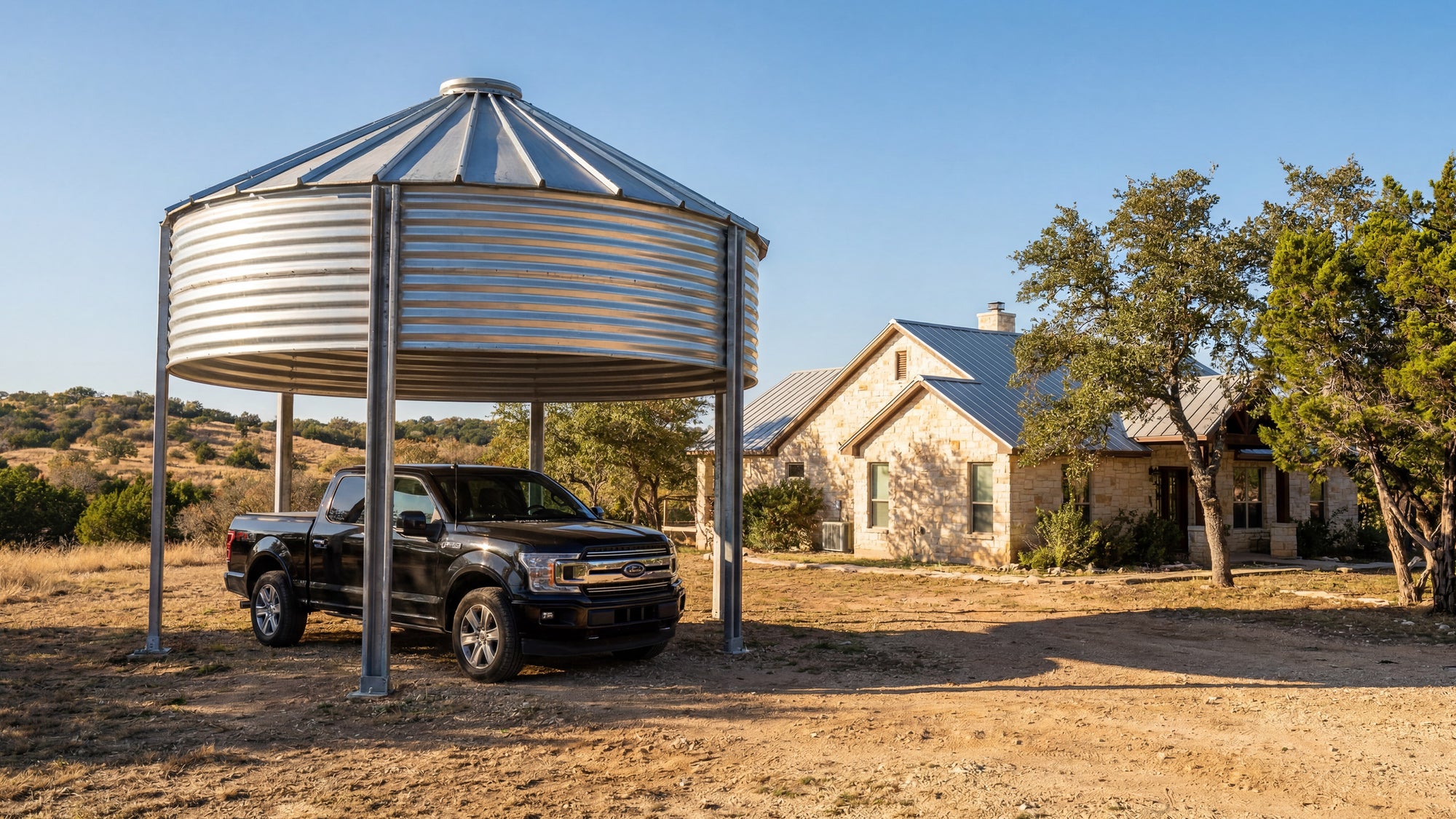

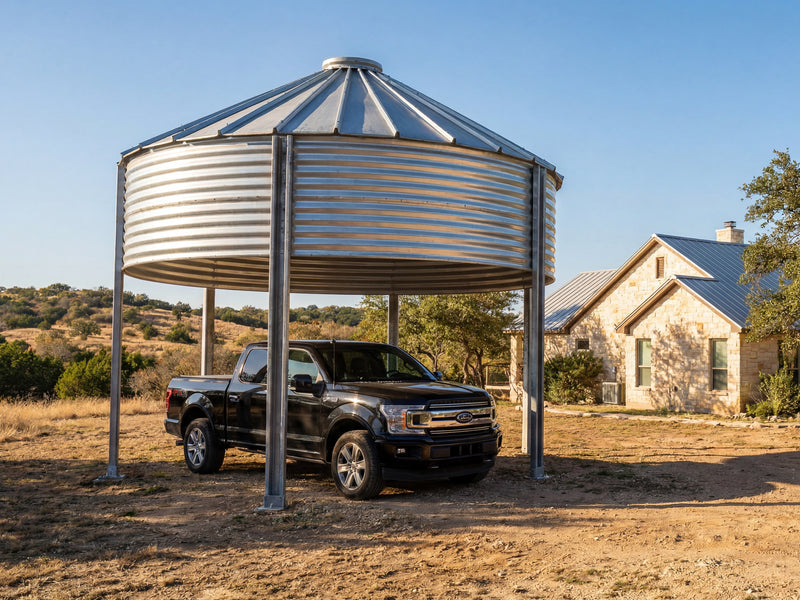

Gator Grain Bin Gazebos are a unique way to create a shaded outdoor gathering space with the durability and character of corrugated steel construction. These gazebos work well for ranches, homes, event spaces, restaurants, barbecue areas, fire pits, commercial properties, and any outdoor area where you want something functional, eye-catching, and built to last.

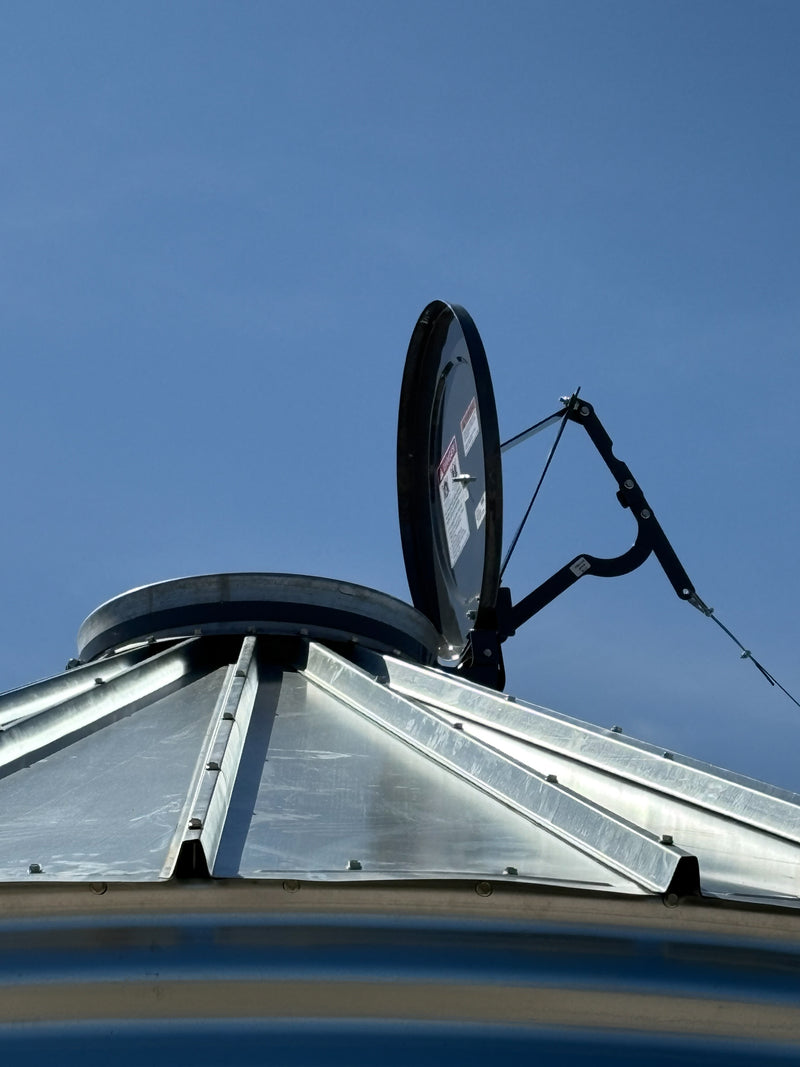

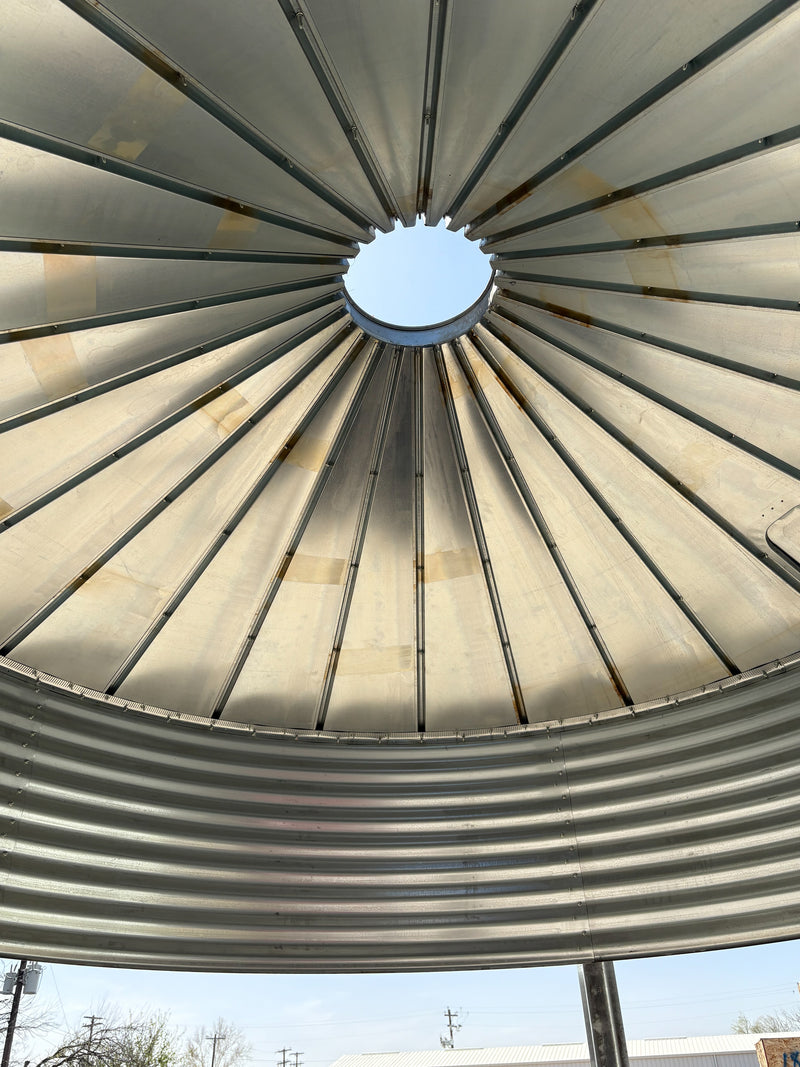

Each gazebo includes a patented roof peak opening hatch designed to help smoke escape when used over a barbecue pit, fire pit, or cooking area. The roof hatch also helps with airflow, making the structure more comfortable during warmer months while still providing shade and protection from direct sun.

Standard gazebo sizes include 12-foot, 15-foot, 18-foot, 21-foot, and 24-foot options, with larger sizes available by request. Do-it-yourself gazebo packages and installation manuals can be picked up from our Marble Falls, Texas location, and a 16-foot trailer or larger is recommended for pickup. For customers who prefer a turnkey option, the Pinnacle installation crew can also build the gazebo on-site for an additional installation fee.

Gazebo Dimensions

Diameter with "z" legs Height to bottom of top wall panel Overall ht
12'10 ¾" 7'6 ¾" 14'7 ½"
15'10 ¾" 7'6 ¾" 15'4 ½"
18'10 ¾" 7'6 ¾" 16' 1"
21'10 ¾" 7'6 ¾" 16'10 ½"
24'10 ¾" 7'6 ¾" 24' 10 ¾"

Gazebo Shipping Dimensions

Gazebo model Gazebo Shipping Dimensions Weight
12' Pallet 1: 10' L x 4' W x 36" T 200 lbs
12' Pallet 2: 6' L x 36" W x 12" T 420 lbs
12' Pallet 3: 12' L x 36" W x 24" T 760 lbs
15' Pallet 1: 10' L x 4' W x 36" T 200 lbs
15' Pallet 2: 7' L x 36" W x 12" T 815 lbs
15' Pallet 3: 12' L x 36" W x 24" T 950 lbs
18' Pallet 1: 10' L x 4' W x 36" T 220 lbs
18' Pallet 2: 9' L x 36" W x 12" T 1036 lbs
18' Pallet 3: 12' L x 36" W x 24" T 1140 lbs
21' Pallet 1: 10' L x 4' W x 36" T 225 lbs
21' Pallet 2: 10' L x 36" W x 12" T 1307 lbs
21' Pallet 3: 12' L x 36" W x 24" T 1330 lbs
24' Pallet 1: 10' L x 4' W x 36" T 240 lbs
24' Pallet 2: 13' L x 36" W x 12" T 1584 lbs
24' Pallet 3: 12' L x 36" W x 24" T 1520 lbs
